24-well Deep Well Plates

High-quality 24-well deep well plates designed for easy plate interchange in UltraDx® EX-24 DNA/RNA Extraction System for DNA/RNA purification, sample storage, liquid handling, and high-throughput screening.

◉ Well Volume: 10 mL
◉ Plate Color: Transparent
◉ Plate Format: 24-well
◉ Plate Material: Clear polypropylene (PP)
◉ Bottom Shape: V-bottom
◉ Sealing Method: Silicone or EVA cap mats, sealing films
◉ Certified: RNase/DNase free, pyrogen free
◉ Adapted Equipment: DNA/RNA Extraction System, Multi-channel pipettes and automatic liquid handling system

Key Features

Ultrassay 24-well deep well plates provide a higher sample volume than round wells of the same plate size, enabling high-density sample storage and minimizing wasted space between wells. The V-bottom(conical bottom) plate maximizes liquid removal and aids sample concentration, reconstitution and centrifugation. Square well plates have better compatibility with automated DNA/RNA Extraction System, automated pipetting systems and liquid handling system, improving the precision and reliability of sample transfers.

◉ Made of high-quality polypropylene(PP) with high chemical stability
◉ Manufactured by automatic production lines with high-accuracy mold
◉ Certified free of RNase, DNase, DNA, pyrogen, and endotoxin
◉ Available non-sterile, sterile packaging
◉ Available V-bottom
◉ Excellent flatness, ensures the sealing performance of the heat-sealing film
◉ Flat sides improve stability, easier to stack and transport
◉ Good transparency, clear numbers on the board easy for sample tracking
◉ Good verticality, good evenness, consistent batch quality
◉ Good adaptability, easy loading, passed strict air tightness testing, no liquid leakage
◉ Can be stored at –80 °C and autoclavable (121°C, 20 min)
10 mL well capacity – supports large-volume processing
◉ Compatible with Ultrassay systems

Technical Specification
Capacity Order No. Description Packaging

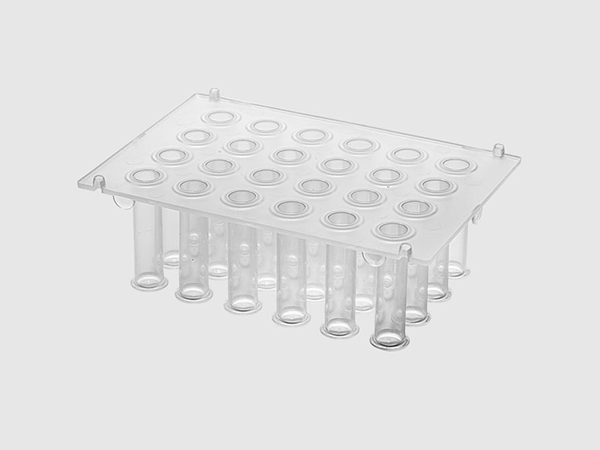

2.2 mL UBDPSV-24 10ml 24-well deep well plate, square well, V bottom + 24-strip tip combs 5 pcs/bag, 10 bags/case
