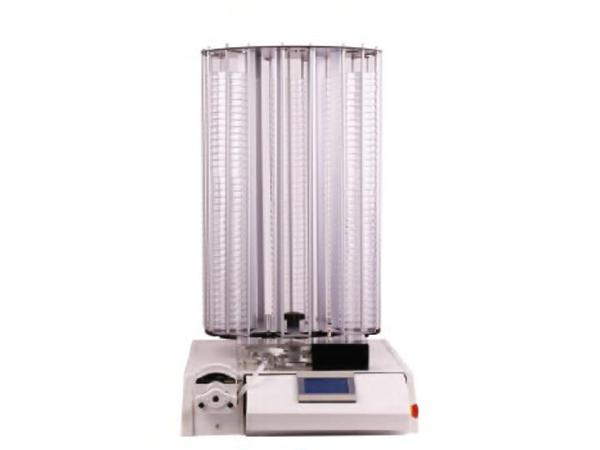

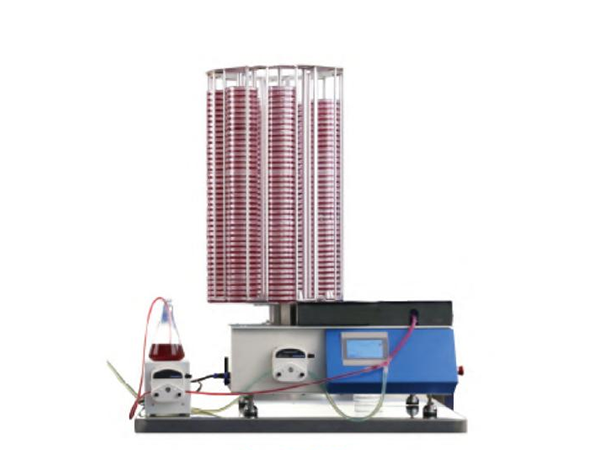

Ultrassay Automated Culture Media Dispensers are compatible with culture media preparators feature an advanced sterilization system that includes: heating, sterilization and fast cooling. This process not only ensures the effective elimination of all microorganisms, but also drastically boosts the laboratory’s time management and productivity.
Main Features
- Optional printer module to print production date, validity period, batch number and other information.
- Double pump system for preparing blood culture dishes.
- Equipped with a system calibration program, the calibration is easy to operate and ensures accurate dispensing volume.
- Built-in 254nm UV lamp, independent disinfection of the dispensing area, low risk of pollution, automatic reminder when the life of the UV lamp expires.
- Large-size touch screen, easy to operate, simple and intuitive to set parameters.
- Petri dishes and turntables can be disassembled for cleaning and disinfection.
- The curved spring plate of the culture dish holder makes loading and unloading the culture dish easier and faster.
- With fault alarm function.
Technical Specification
| Model |
MediaFill-400 |
MediaFill-800 |
| Flow rate |
0.2~1120ml/min (25#), 0.3~1780ml/min (17#) |
|
| Dispensing accuracy |
About 1% (20ml) |
|
| Standard dispensing speed |
About 400 pieces/h (dispensing volume 20ml, petri dish diameter: 90mm) |
About 800 pieces/h , double pump system (dispensing volume 20ml, petri dish diameter: 90mm) |
| Petri dish holder |
Standard 25 pieces/grid, 9 grids, up to 175 petri dishes (diameter 90mm) can be placed at one time, and 60mm diameter petri dish holder is optional |
Standard 40 pieces/grid, 9 grids, up to 280 petri dishes (diameter 90mm) can be placed at one time, and 60mm diameter petri dish holder is optional |
| Dispensing plate |
Standard 3 grids (petri dish diameter 90mm), optional dispensing plate for 60mm petri dish, dispensing plate and petri dish holder must be used together |
Standard 6 grids (petri dish diameter 90mm), optional dispensing plate for 60mm petri dish, dispensing plate and petri dish holder must be used together |
| Power supply |
220V, 50/60 Hz, 4A |
|
| Ambient temperature |
25℃ |
|
| Ambient humidity |
＜90% |
|
| Dimensions (W×D×H) |
510×725×645mm |
640×1000×720mm |
|
Weight |
42kg |
46kg |
*Ultrassay BioTech Co., Ltd. reserves the right of final interpretation of different specifications.
