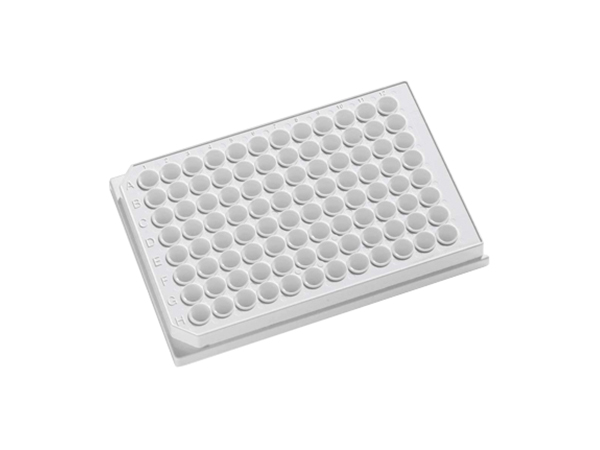

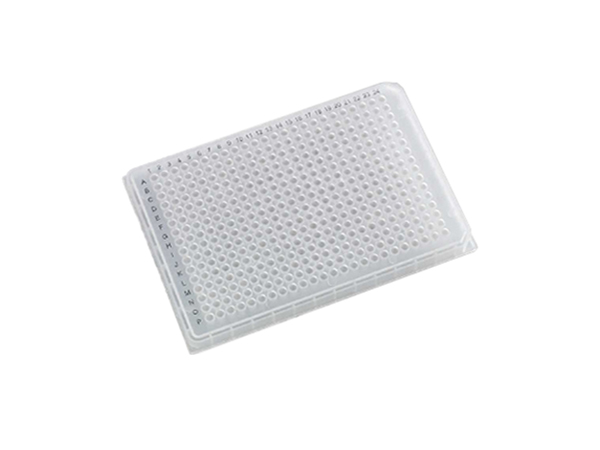

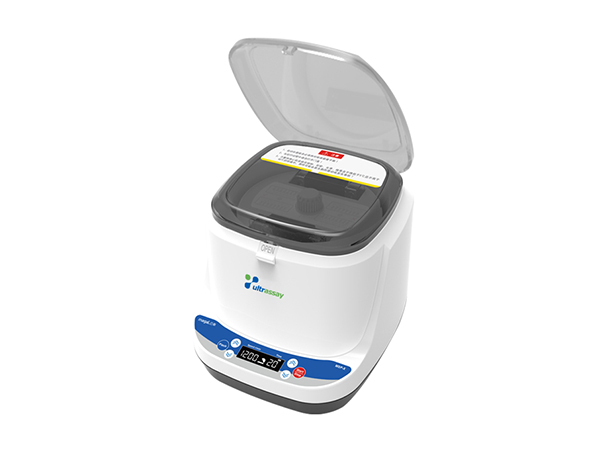

MSP-X Microplate Centrifuge is an instantaneous centrifuge specially designed for microplate. It is suitable for: 0.2ml PCR tube strip, 8×0.2ml PCR tube strips, 96-well or 384-well PCR plates and Various standard PCR microplates (including skirted).
Purposes
The microplate centrifuge adopts internationally advanced design concepts and manufacturing technologies, featuring a smooth and aesthetically pleasing appearance, compact and sturdy structure, and embodying high versatility and ease of operation. It also possesses the characteristics of “smooth start” and “smooth braking” functions; this microplate centrifuge is very suitable for 96-well or 384-well and small capacity microplates, as well as compatible with skirted, non-skirted, and various standard PCR microplates.
Key Features
- The instantaneous centrifugation function reaches its maximum speed in about 6 seconds, enabling quick removal of droplets from the hanging walls;
- Faster acceleration and deceleration rates, completing the required experiments in a shorter time;
- Door cover protection, over-speed and imbalance detection systems, allow real-time monitoring of the centrifugation process, ensuring safe operation of the instrument; Upon operation completion, error occurrence, or imbalance, a sound signal prompts while stopping the operation, and the LCD displays the result code;
Technical Specification
| Specifications | MSP-X |
| Speed range | 300~3000 |
| Max. RCF | 608×g |
| Speed accuracy | ±15rpm |
| Rotor capacity | 2×96-well microplate |
| Run time | 1-99min.1-59sec |
| Loading mode | Vertical |
| Misoperation alarm | Voice + code |
| Display | LCD |
| Noise | ≤60dBA |
| Acceleration time | ≤6s |
| Deceleration time | ≤5s |
| Motor | Brushless DC motor |
| Power | Single-phase, 110V-240V,50Hz/60Hz, 50W |
| Dimension (W×D×H) | 225×255×215mm |
| Weight | 3.9kg |
| Protection | IP21 |
| Safety standard | EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
*Ultrassay BioTech Co., Ltd. reserves the right of final interpretation of different specifications, And products upgrade without notice.
