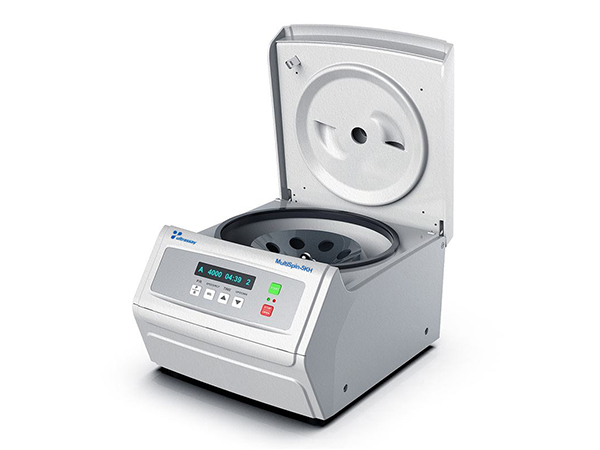

MultiSpin-5KH Benchtop Low Speed Centrifuge is equipped with variety of rotors and adapters which been used for separation and purification of radio immunity clinical medicine, biochemistry, pharmaceuticals and blood products.
Key Features
- The housing is made of high-strength ABS plastic, featuring a simple and compact design with a lightweight;
- Equipped with a built-in steel protective inner sleeve, it offers reliable safety assurance;
- Equipped with precise microcomputer control, driven by a high-torque brushless DC motor, and features a high-definition LCD screen with large digital display for clear and bright readability, ensuring quick and convenient operation;
- Employed an electromagnetic door lock and includes multiple safety protection functions such as overspeed, imbalance, overload, and lid check. It also has an emergency lid opening device that allows the centrifuge chamber cover to be opened during a power outage;
- Up to 9 user-defined centrifugation programs (including one two-step gradient program and one three-step gradient program) for routine centrifugation protocols, streamlining the workflow;
- Both fixed-angle and swing-out rotors are suitable for centrifuging 5~50ml tubes, catering to different experimental requirements;
- 10 acceleration and deceleration rates are available to optimize centrifugation results;
- A program parameter lock function is included to prevent accidental modification of settings;
- A smooth airflow design that maximizes the use of natural convection of hot & cold air, creating an efficient cooling cycle to prevent samples overheating.
Technical Specification
| Model |
MultiSpin-5KH |
| Max. Capacity |
24x10ml |
| Max. Speed |
5000rpm |
| Speed Accuracy |
±10rpm |
| Max. RCF |
3550×g |
| Time Range |
0~99mins 59s |
| Display |
LCD |
| Noise |
≤ 56dBA |
| Acc/Dec |
10 Kinds |
| RPM/RCF Convert |
Yes |
| Power Supply |
AC 220V 50HZ |
| Dimension (mm) |
430×330×250 |
| N.W. (kg) |
16 |
*Ultrassay BioTech Co., Ltd. reserves the right of final interpretation of different specifications.
Avaliable Rotors
| Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
| NO05003 | Angle rotor | 5000 | 12×10/15ml | 3330 |
| NO05007 | Angle Rotor | 5000 | 6×50ml | 3220 |
| NO05006 | Angle Rotor | 5000 | 24×10ml/12×15ml | 3550 |
| NO05021 | Swing-out Rotor | 5000 | 6×10ml | 3460 |
| NO05244 | Swing-out Rotor | 5000 | 16×5/7ml | 2160 |
| NO05260 | Swing-out Rotor | 5000 | 4×50ml | 2360 |
*Ultrassay BioTech Co., Ltd. reserves the right of final interpretation of different specifications.
