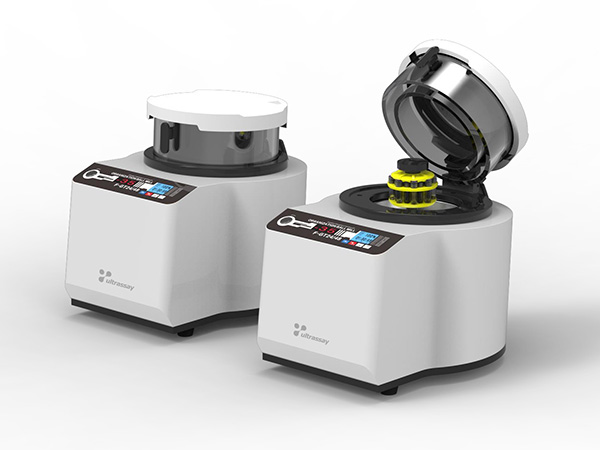

U-GT48 High-Throughput Tissue Grinder

  • Ultrassay U-GT48 is a high-quality benchtop high-throughput tissue grinder/homogenizer.
  • It is equipped with 48 adapters for 2 mL or other-sized cell disruption tubes and grinding jars.
  • The instrument is suitable for sample crushing, grinding, mixing, homogenization and cell disruption in food, medical, biological, metallurgical, chemical and environmental applications.
  • It is widely used in the extraction of DNA, RNA and proteins.
  • Designed in line with ergonomics, this benchtop unit features visual operation and a variable frequency LCD control system, enabling adjustable speed, timing and intermittent grinding modes.
  • It delivers high-frequency three-dimensional vibration with an amplitude of 35 mm, and the fastest processing time is only 5–30 seconds.
  • Therefore, the U-GT48 offers comprehensive functions, short processing time, excellent sample preparation performance, low noise, stable operation and simple operation.

Working Principle

Under the action of the geometric structure of the grinding carrier and the special figure-8 movement mode, the high-frequency and high-intensity ollision between the grinding medium and the sample finally achieves an extremely excellent grinding effect, which is characterized by fast processing speed.

Why Choose Ultrassay High-throughput Tissue Grinder?

  • ✓ High-throughput: Max. 48 samples per run
  • ✓ Versatile: Small size, light weight, benchtop operation, ergonomic design;
  • ✓ Flexible Adapter/Jar Selection: 0.2ml, 0.5ml, 1.5ml, 2.0ml, 5.0ml, 7.0ml, 15ml and 25ml
  • ✓ Easy to Use: Touch screen and software for flexible operation
  • ✓ Reliable: 304 stainless steel grinding chamber and aluminum alloy platform
  • ✓ Versatile Applications: Plants, animals, bacteria, etc
  • ✓ Professional Support: Free lifetime technical support
  • ✓ 1-Year Warranty: Manufacturer warranty with optional extension

Request a Quote

Interested in the High-throughput Tissue Grinder? Contact us for a personalized quote and technical consultation.

📧 Email: info@ultrassay.com | 📱 WhatsApp: +86 186 5516 6990

Key Feature
  • Small size, light weight, benchtop operation, ergonomic design;
  • Multi-purpose, suitable for cell and tissue disruption, homogenization, mixing and grinding;
  • Capable of processing gram-level micro samples and diversified batch samples;
  • 10mm thick visible PC transparent flip cover, sound-insulating, more convenient for operation and observation;
  • 304 stainless steel grinding chamber and aluminum alloy platform provide a clean and pollution-free grinding environment;
  • Visible centrifuge tube adapter for observing sample crushing status;
  • Lightweight synthetic nylon centrifuge tube adapter, easy to move, and can be used as a bracket;
  • Ideal processing results can be obtained in an extremely short time of 10 seconds to 2 minutes, fast and efficient processing;

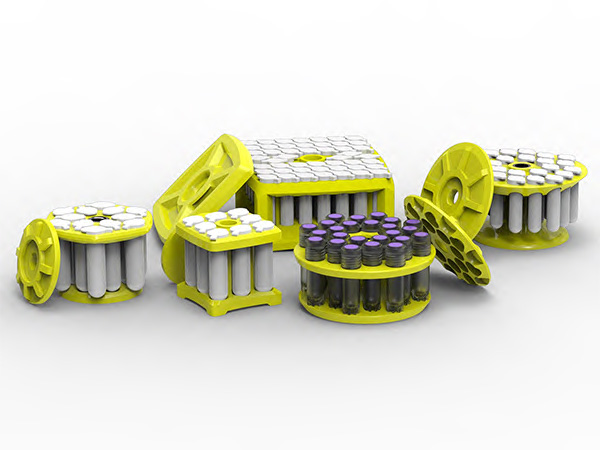

  • Multiple adapters of different volumes are available to meet the needs of different processing capacities;
  • Adapters of different specifications are universal, and users can quickly disassemble, replace and install them by themselves;
  • Dry grinding, wet grinding, and can be connected to liquid nitrogen tank for low-temperature grinding;
  • Simpler LCD operation program realizes multiple functions such as timing, speed adjustment, variable speed, continuous and intermittent operation;
  • Equipped with temperature detection, sound insulation and heat dissipation;
  • The instrument has low power consumption, low loss, long service life and low consumable cost;
Technical Specification
Model U-GT48
Processing Principle Crush / friction
Sample Type Hard / Mid-hard / Crisp / Dry or Wet / Fibrous / Elasticity / Viscosity
Processing Model Grind / Mix / Homogenize / Cell lysis
Feed Size < 10 mm
Final Fineness 1~5 μm
Grinding Mode Dry / Wet / Frozen
Motion 3D Figure-8 Orbital Motion
Motion Amplitude 35mm
Main Function Continuous & Intermittent | Variable Speed | Timing | Power-off Memory | Temp. Detection | Liquid Nitrogen Port | Condensate Port
Speed Range 180~3000 rpm
Processing Time 10s ~ 2 mins
Time Setting Range 99:99:99 (h:m:s)
Display LCD screen
Material of Jar Tungsten Carbide | Zirconia | Stainless Steel | MC Nylon | PTFE
Jar Volume 15 ml x 2 | 25 ml x 2
Ball Material Tungsten Carbide | Zirconia | Agate | SS
Ball Size 1 ~ 25mm
Centrifuge Tube 0.2 ml | 0.5 ml | 2 ml | 5 ml etc.
Adapter 0.2 ~ 2 ml x 48 / 5 ~ 15 ml x 8
Adapter Material MC Nylon
Power Supply 100~240V, 50/60Hz
Power Consumption 150W
Overall Dimension 380x480x350 mm
Protection Class IP63
Net Weight 28kg
