Ultrassay uD10 Gradient Diluters are a laboratory tool used to create precise dilutions of a solution. It works by combining two solutions of different concentrations to create a gradient of concentrations which is commonly used to study the effects of drugs or other chemicals on cells or tissues, to create standard curves for quantitative assays, and to perform experiments that require precise control over concentration gradients.
uD10 Gradient Diluters are versatile tools that can be used in a wide range of applications in the life sciences and drug research.
uD10 Gradient Diluters
Features
- Fast and Accurate Dilution: uD10 Gradient Diluters allow for a fast and efficient operation within 10 minutes for diluting 10 gradients which can increase the throughput and efficiency. The accuracy of the dilution process is ensured by the automatic liquid uptake position adjustment technique.
- No-wash design: The instrument adopts a turntable design and is equipped with disposable pipette tips for non-contact liquid handling, leaving no sample residue and requiring no cleaning.
- Flexibility: The instrument features a simple and an user-friendly software for easily operation. Connect with external tablet/PC via wireless communication, enabling remote operation of instruments placed in a bio-safety cabinet.
- Wide Dilution Range: The instrument offers a wide dilution ratio range of up to 25,000 between stock and S1, allowing for a variety of applications.
- Data Management: The historical record function simplifies data management and analysis, allowing the user to view and export set parameters and information of each gradient concentration to USB disk.
- Safe and Reliable Operation: The EP tube cover anti-rebound function prevents spills and contamination during the dilution process.
- Time and Cost Savings: Ulrassay uD10 Gradient Diluters can save time and reduce costs compared to manual dilution methods, particularly when creating complex gradients.

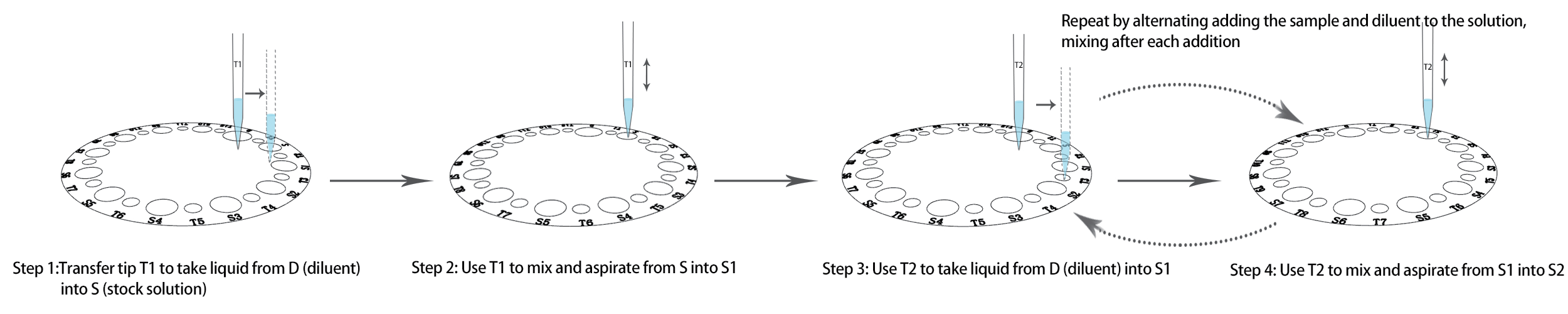

Standard Working Mode

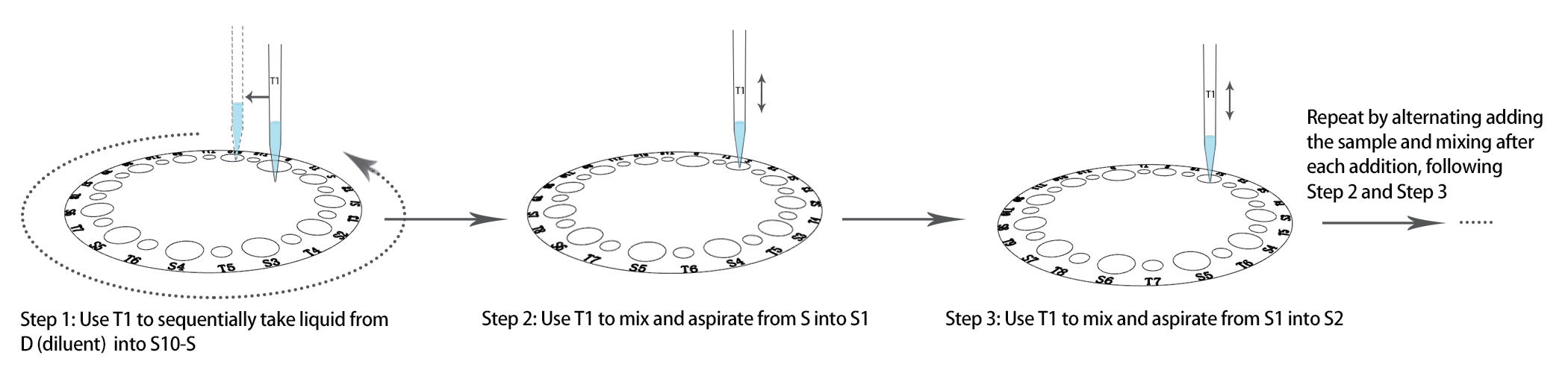

Quick Working Mode
Applications
- In microbiology, uD10 Gradient Diluters are used to create antibiotic gradient plates, which can be used to determine the minimum inhibitory concentration (MIC) of an antibiotic against a particular microorganism. This information is important for selecting the most effective antibiotic for treating an infection.
- In molecular biology, uD10 Gradient Diluters are used to create gradient PCR reactions, which can be used to optimize the annealing temperature for a particular set of primers.
- In pharmacology, uD10 Gradient Diluters are used to create dose-response curves, which can be used to determine the potency of a drug against a particular biological target.
- In biochemistry, uD10 Gradient Diluters are used to create gradients of different biochemical compounds,such as the preparation of standard solution of Liquid Chromatography application.
Technical Specifications
| Model |
uD10S |
uD10 |
| Sample Capacity |
10 |
9 |
| Volume |
20~200μL |
10~1000μL |
| Resolution |
0.01μL |
0.05μL |
| Accuracy |
200μL (Accuracy±1.5%, CV≤1%) 20μL (Accuracy±4%, CV≤2%) |
1000μL (Accuracy±1%, CV≤0.5%) 100μL (Accuracy±2%, CV≤1%) |
| Dilution Calculation |
Automatic calculation based on the target concentration in Culture media |
Automatic |
| Communication Interface |
Bluetooth |
|
| Communication Distance |
5m |
|
| Power Consumption |
100W |
|
| Power Supply |
AC 110~240V, 50/60Hz |
|
| Analysis software |
uDiluter-II |
|
| Weight/Dimension |
4KGS, 238mm*154mm*344mm |
|
