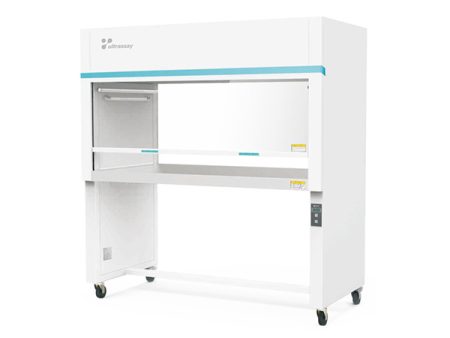

Ultrassay® SW-CJ Vertical Laminar Flow Cabinet is a vertical laminar flow cabinet with 3 levels velocity adjustable, that is widely use to various laboratories in search, medical, agriculture etc.
Features
Sliding door system, digital display, 3 level velocity adjustable, single and double side optional, UV light appointment.
- It adopts the Japanese imported suspension lifting system, and the anti-UV safety glass is safe and reliable.
- Digital display control interface with soft key button, air velocity can be adjusted in 3 level.
- Interlocking function of lighting and sterilization system, operator can make an appointment for UV light.
- Single or double person, single or double side operate can be optional.
Technical Specification
| Model | SW-CJ-1F-II | SW-CJ-2F-II | SW-CJ-1FD-II | SW-CJ-2FD-II |
| Cleanliness | ISO CLASS 5 | |||
| Air Velocity | ≥0.3 m/s (adjustable) | |||
| Noise | ≤62 dB(A) | |||
| Illumination | ≥300 Lx | |||
| Power Supply | AC220V, 1Φ, 50Hz | |||
| Comsumption | 250 W | 500 W | 250 W | 500 W |
| Weight | 130 kg | 170 kg | 130 kg | 170 kg |
| Work Dimension (W1xD1xH1) |
870x690x520mm | 1360x690x520mm | 870x690x520mm | 1360x690x520mm |
| (34.3”x27.2”x20.5”) | (53.5”x27.2”x20.5”) | (34.3”x27.2”x20.5”) | (53.5”x27.2”x20.5”) | |
| Overall Dimension (WxDxH) |
1010x750x1600mm | 1360x750x1600mm | 1010x750x1600mm | 1360x750x1600mm |
| (39.8”x29.5”x63.0”) | (59.1”x29.5”x63.0”) | (39.8”x29.5”x63.0”) | (59.1”x29.5”x63.0”) | |
| Size & No. of HEPA Filter | 820x600x50mm x 1 | 610x610x50mm x 2 | 820x600x50mm x 1 | 610x610x50mm x 2 |
| (32.3”x23.6”x2.0” x 1) | (24.0”x24.0”x2.0” x 2) | (32.3”x23.6”x2.0” x 1) | (24.0”x24.0”x2.0” x 2) | |
| Light | LED 7w x 1 pc | LED 7w x 2 pcs | LED 7w x 1 pc | LED 7w x 2 pcs |
| UV Light (optional) | 18 w x 1 pc | 36 w x 1 pc | 18 w x 1 pc | 36 w x 1 pc |
| No. of Colony | ≤0.5cfu/dish * 0.5h | |||
| Materials | Working table: All-in-one stainless steel, Outside cabinet: high greade steel and lacquered in ivory. | |||
| Mode of Operation | single people/double side | double people/double side | single people/double side | double people/double side |
| * Not include spare socket, the capacity of each unit is 3A | ||||
