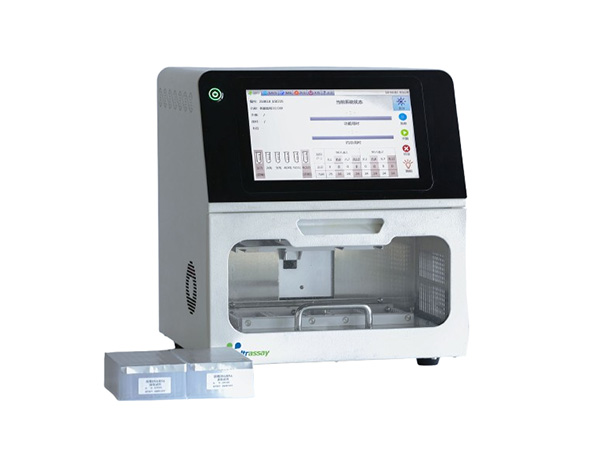

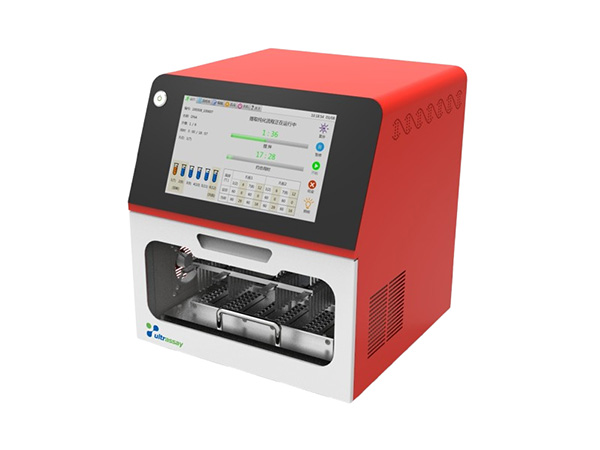

UltraDx® EX-32 DNA/RNA Extraction System

UltraDx® EX-32 DNA/RNA Extraction System is the latest system launched by our company which been used to automatically extract and purify DNA/RNA, protein, and cells. The magnetic beads and samples are absorbed, transferred and released by the magnetic rod and the magnetic sleeve, Completing automated extraction and purification operations. The operation is automated, fast, and simple. By using a special kit or a 96 deep-well plate, 1 to 32 samples can be operated at the same time. With different kinds of magnetic bead nucleic acid extraction reagents, it can extract specimens from the animal and plant tissues, blood and body fluids.

Main Feature
Smart Circular Magnetic Binding

Magnetic beads recovery rate > 99%. Greatly reduce the amount of residual magnetic beads in the system.

Multi-mix mode

13 kinds of amplitude, 6 gears of frequency adjustable, adjustable according to different samples and extraction kits to improve extraction efficiency.

Anti-contamination control

Added with 11-level HEPA filter and UV lamp to effectively prevent cross-contamination.

Independent heating block

8 independent deep-well heating blocks that can reduce mutual interference between reactions.

Removable magnetic rod

Easy to maintain and replace. Prolong the life of the machine.

Touch screen operation

10″ color graphic display with touch screen, external computer not required.

Technical Specification
Model UltraDx® Ex-32 UltraDx® Ex-96
Principle Magnetic beads method
Throughout 1-32 1-96 (192, 24, 48 optional)
Processing Volume 20-1000μL 20-1000μL (24 optional 50ul-5000ul-10000ul)
Plate Type 96 Deep-well plate 96 Deep well plate (24 Deep well plate optional)
Magnetic Rods 32 96 (192, 24, 48 optional)
Collection Efficiency >99%
CV <5%
Heating Lysis and elution (room temperature to 125℃)
Mixing Model Slow, medium, fast, 1-6 gears programmable
Reagent Open system, suitable for all kinds of reagent
Extraction Time 5-45 minutes (depends on project)
Display 10″ color graphic display with touch screen, external computer not required
Protocols Programmable and storable, quantity up to millions
Extension Port 4 USB, ethernet, mouse, keyboard and barcode scanners supported
Disinfection UV lamp
Data Storage Built-in SSD
Exhaust Fan exhaust (Optional side exhaust, rear exhaust, HEPA), Programmable
Working Noise 53dB
Working Temp. 10-40℃
Working Humidity 10-90%
Power 100-240Vac,45-65Hz
Backup Power Optional Built-in Lithium battery to support the completing of progress while power cut
Exterior Dimension L350 × W345 × H400mm L466 × W566 × H700mm
Weight 17kg 36kg
